Product Details
＋
Brand: Advanced Clutch Technology
Manufacturer's Part Number: T3R-M03
Part Type: Clutch Kits
Product Line: ACT Mod-Twin 225 Maxx Xtreme Twin-Disc Clutch Kits
Automotive Fittings Part Number: ACL-T3R-M03
UPC: 842385025533
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 23
Input Shaft Diameter: 1.000 in.
Disc Diameter (in.): 8.800 in.
Disc Diameter (mm): 225mm
Disc Material: Ceramic
Disc Style: 6-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: Yes
Throwout Bearing Style: Standard
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Chromoly
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Description:
Advanced Clutch Technology (ACT) Mod-Twin 225 Maxx Xtreme twin-disc clutch kits are available in two styles—Sprung Race and Rigid Race—for a variety of applications, including many Subaru and Mitsubishi models. Here are descriptions of each:
* MOD-TWIN 225 XX SPRUNG RACE CLUTCH KIT:

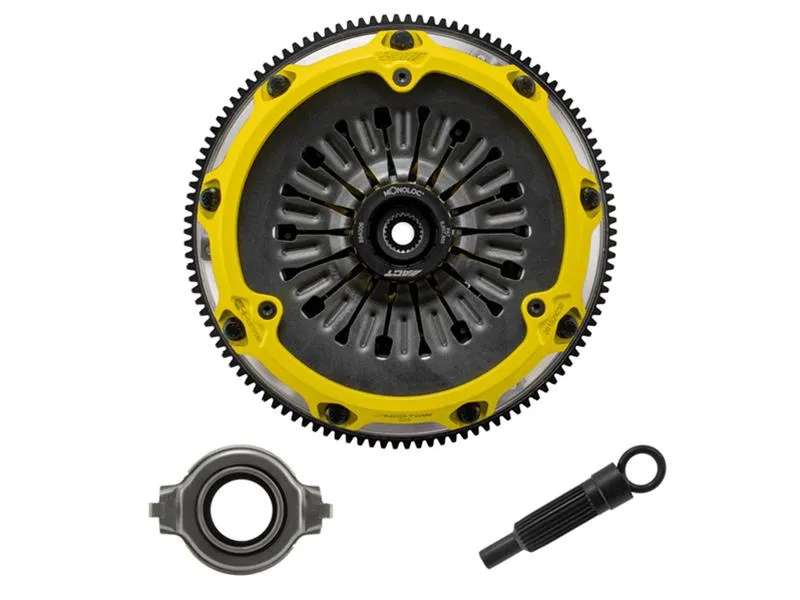

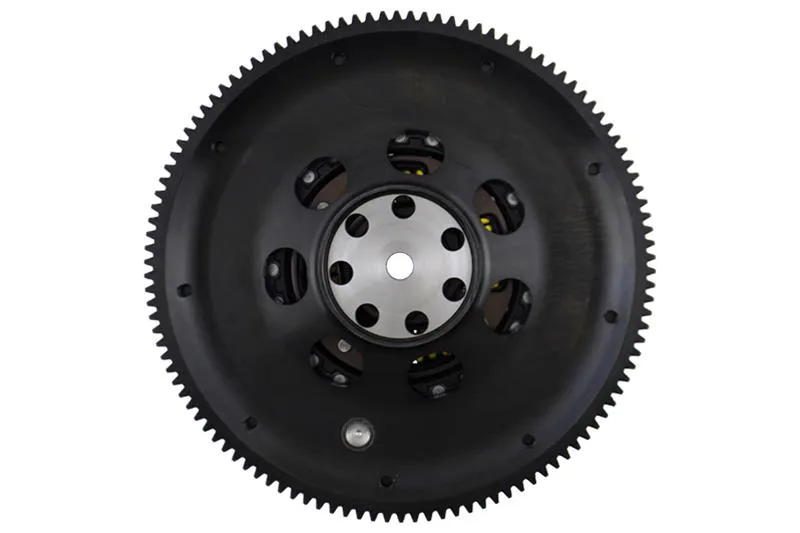

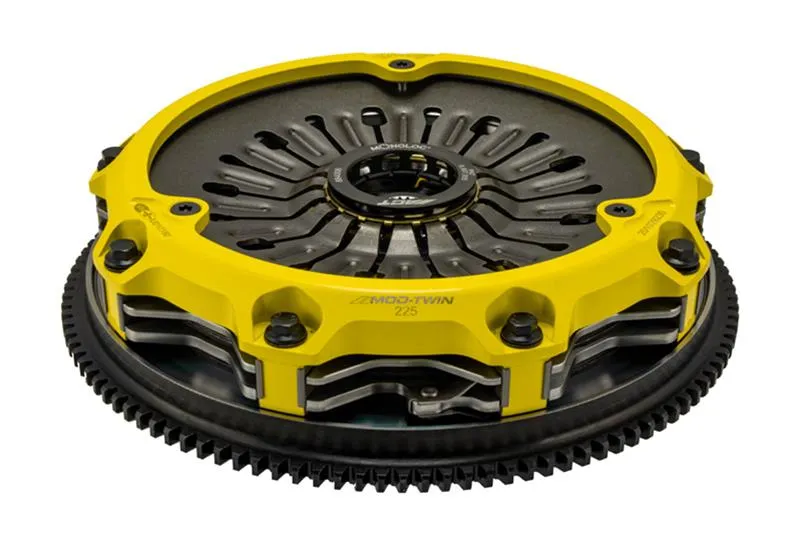

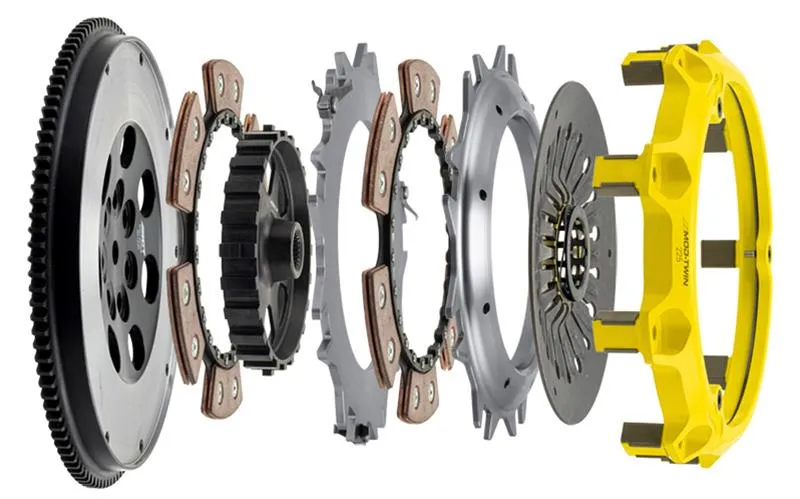

Performs aggressive launches and smoother shifting in high-powered AWDs by combining twice the ceramic friction surfaces with an ultra-durable mono-drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive 4-stage heat treating process, providing a consistent pedal feel requiring moderate effort. Puck-style friction plates with high-quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These plates uniformly transfer torque to a mono-drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung mono-drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed).
-- Features and details:
Predictable aggressive engagement, increased pedal effort, smooth shifting, possible start-off judder with OE to mild transmission gear noise; forged aluminum cover, mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100 percent clamp load tested, balanced and SFI certified.
* MOD-TWIN 225 XX RIGID RACE CLUTCH KIT:
Tackles aggressive launches and rapid shifting of high powered AWDs by combining twice the ceramic friction surfaces with a no-nonsense solid mono-drive hub in a completely modular design. Each diaphragm spring endures an exclusive 4-stage heat treating process, providing a consistent pedal feel requiring moderate effort. Puck-style friction plates with high-quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These plates uniformly transfer torque to a mono-drive chromoly steel hub which is heat treated for strength and durability, extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid mono-drive hub, floater, patented Monoloc Collar.
-- Features and details:
Predictable aggressive engagement, increased pedal effort, quick shifting, possible start-off judder with mild to moderate transmission gear noise; forged aluminum cover, mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100 percent clamp load tested, balanced and SFI certified.
