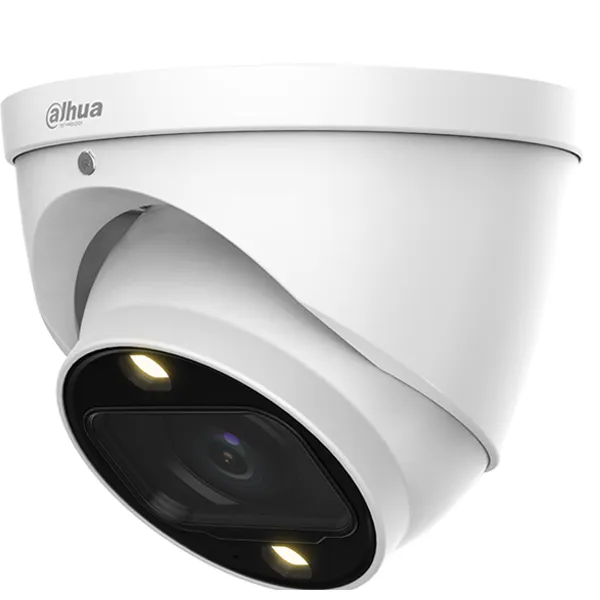

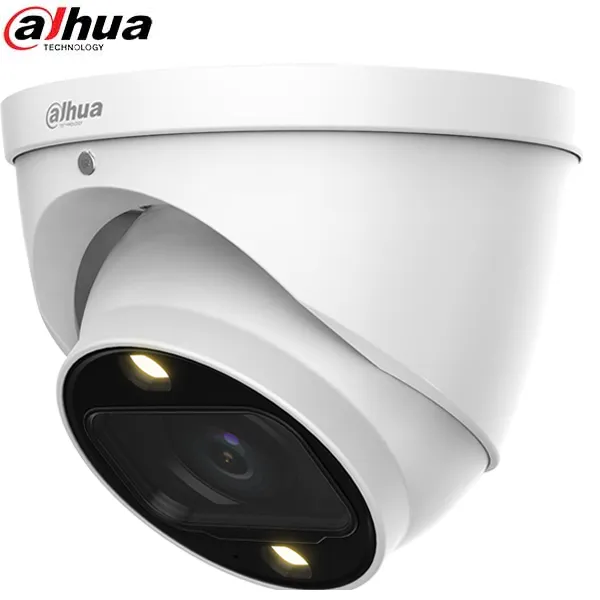

DH-A52CJ6Z
Experience the superior clarity of Dahua’s 5 MP HDCVI eyeball camera for vast coverage and superior image details. The 5 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a 2.8 mm fixed lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Night Color and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
- 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
- 5 MP (2880 x 1620) at 25 fps Maximum Resolution
- 16:9 Aspect Ratio for no Image Stretching
- 2.8 mm Fixed Lens
- HDCVI, AHD, TVI, or CVBS Output, Switchable
- Maximum IR Length 30 m (98.43 ft), Smart IR
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (applies to products sold through an authorized Dahua Dealer)
-
Call 1-800-878-6604 for Dealer Prices!
Technical Specifications
| Camera | |
| Image Sensor | 1/2.7-in. CMOS Sensor |
| Effective Pixels | 2880 (H) x 1620 (V), 5 MP |
| Aspect Ratio¹ | 16:9 |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/4 s to 1/100,000 s |
| Minimum Illumination | Color: 0.001 lux at F1.2 |
| S/N Ratio | More than 65 dB |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Mount Type | ø14 |
| Focal Length | 2.7 mm to 13.5 mm |
| Maximum Aperture | F1.2 |
| Angle of View |
Horizontal: 35° to 112° Vertical: 19° to 57° Diagonal: 40° to 137° |
| Close Focus Distance | 1500.0 mm (59.06 in.) |
| Installation Angle | |
| Range | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
| DORI Distances² | |
| Detect (8 ppf) | 2.7 mm - 65.20 m (213.91 ft) , 13.5 mm - 186.60 m (612.20 ft) |
| Observe (19 ppf) | 2.7 mm - 26.0 m (85.30 ft) , 13.5 mm - 74.60 m (244.75 ft) |
| Recognize (38 ppf) | 2.7 mm - 13.0 m (42.65 ft) , 13.5 mm - 37.30 m (122.37 ft) |
| Identify (76 ppf) | 2.7 mm - 6.50 m (21.32 ft) , 13.5 mm - 18.60 m (61.02 ft) |
| Video | |
| Resolution Output |
5 MP (2880 x 1620), 4 MP (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 480) |
| Frame Rate |
5 MP at 25 fps |
| Video Output | One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable |
| Video Transmission³ | RG-59/U Coax: 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4 MP: 500 m (1640.42 ft) RG-6/U Coax: 720p: 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4 MP: 700 m (2296.59 ft) CAT 6 UTP: 720p: 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4 MP: 300 m (984.25 ft) |
| Day/Night | Color |
| OSD Menu | Multi-language |
| BLC Mode | BLC, HLC, HLLC-Pro, True WDR |
| WDR | 120 dB |
| Gain Control | Auto, Control |
| Noise Reduction | 3D NR |
| White Balance |
Auto, Manual |
| Privacy Masking | Off, On (8 Areas, rectangular) |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| Safety | UL60950-1 CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014 |
| Electrical | |
| Power Supply | 12 VDC ±10% or 24 VAC ±25% |
| Power Consumption | Maximum 9.9 W (12 VDC with Illuminator on) |
| Environmental | |
| Operating Conditions | –30° C to 60° C (–22° F to 140° F) Less than 95% RH |
| Storage Conditions | –30° C to 60° C (–22° F to 140° F) Less than 95% RH |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | ø122.0 mm x 104.80 mm (ø4.80 in. x 4.13 in.) |
| Net Weight | 0.61 kg (1.34 lb) |
| Gross Weight | 0.78 kg (1.72 lb) |
1. To view the 16:9 video output on a Dahua HDCVI DVR you must update the DVR to the latest firmware. Obtain the latest firmware on the Dahua Wiki at 2. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 3. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
Downloads:
Functions:
Night Color Technology
Dahua cameras with Night Color Technology incorporate a high-performance sensor and a large aperture lens to produce crisp, clear color images in low light environments. This light-sensitive technology allows the camera to capture more available light and reproduce color images with superior detail and contrast. The Night Color camera incorporates white-light LEDs to offer full-color images in total darkness, as well as an effective visual deterrent. This technology provides smart illumination where the camera automatically activates the white-light illuminators when ambient light levels fall and adjusts exposure time and LED intensity to prevent overexposing the image.
Three Signals over One Coaxial Cable
HDCVI technology simultaneously transmits video, audio, and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms.
Super Adapt
Super Adapt technology monitors external lighting conditions and automatically adjusts the camera settings to provide optimal video images, whether indoors or outdoors. Plus, with this technology installers no longer have to take time to set the optical parameters manually, the camera automatically adjusts to the optimal settings, saving time and money.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. This HDCVI camera transmits audio signals over the coaxial cable, eliminating the need for separate audio wiring. In addition, the camera uses unique audio processing and transmission technology that eliminates noise to best duplicate source audio, guaranteeing high-quality and highly effective audio information.
Multiple-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Protection
The camera is subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating making it suitable for demanding outdoor applications. The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications, and its 4KV lightning rating provides effective protection for both the camera and its structure against lightning.
