Product Details
＋
DH-VTH5221D-S

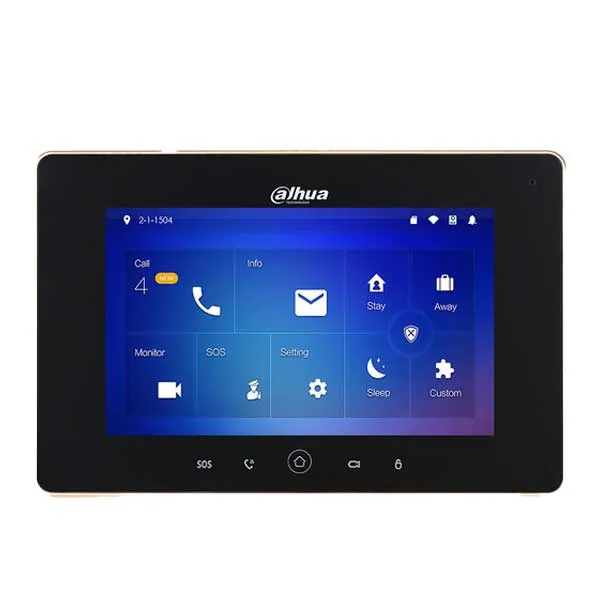

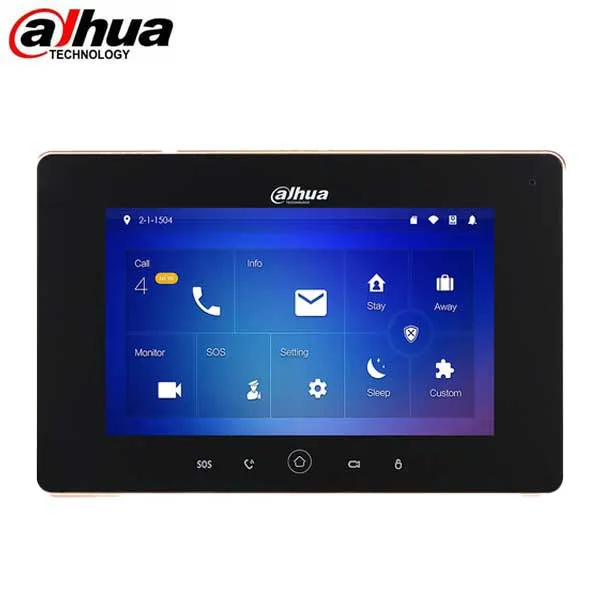

The DHI-VTH5221-S Series indoor monitors allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor. The DHI-VTH5221-S Series indoor monitors are used as part of a video intercom solution with compatible outdoor stations.
- 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
- Simplified Connection and Setup
- Supports Alarm Integration with 3rd Party Intrusion Devices
- Monitor up to 32 IP Cameras
- Integrated Micro SD Card Slot, maximum 32 GB
- Perform Call Session Recordings and Take Snapshots of Live Video
(requires SD card) - WiFi-enabled and PoE Power Supply
- Setup and Activate up to Six Alarm Inputs and One Alarm Output
- Surface-mounted
- Compatible with: outdoor station
- Five-year Warranty (for products sold through authorized Dahua Dealers)
- Call 1-800-878-6604 for Dealer Prices!
| System | |
| Main Processor | Embedded Micro Processor |
| Operating System | Embedded Linux |
| Display | |
| Viewing Area |
7-inch TFT, Capacitive |
| Resolution |
1024 x 600 (WVGA) |
| Input |
Touchscreen Display |
| Interface | |
| Audio |
Input: Omnidirectional Microphone Output: Built-in Speaker Two-way Talk |
| Audio Compression | G.711 |
| Wired Zones | Six (6) On-board Zones |
| Wireless Zones | Eight (8) |
| Alarm Out |
One (1) Channel |
| RS485 | One (1) Port |
|
Memory |
Micro SD slot, 32 GB Maximum |
|
Network |
|
| Video Compression |
H.264 |
| WiFi | IEEE 802.11b/g/n |
| Ethernet |
10/100 Mbps, Self-adaptive |
| Network Protocol |
TCP/IP |
| Third-party Camera Support | ONVIF H.264 Cameras, maximum resolution of 720p |
| Management Software | DSS Express/Pro |
| Certifications | |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B ANSI C63.4 - 2009 EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006 A1:2009 EN 61000-3-3:2008, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 |
| Electrical | |
| Power | 12 VDC or PoE (802.3af) Requires a separate 12 VDC power supply, or power via a PoE switch. |
|
Power Consumption |
Standby: < 5 W Operation: < 7 W |
| Environmental | |
| Operating Temperature | -10° C to 55° C (14° F to 131° F) |
| Operating Humidity | 10% to 90%, Relative |
| Construction | |
| Dimensions |
215.0 mm x 140.0 mm x 21.0 mm (8.46 in. x 5.51 in. x 0.83 in.) |
| Installation | Surface-mount |
| Appearance | Black |
