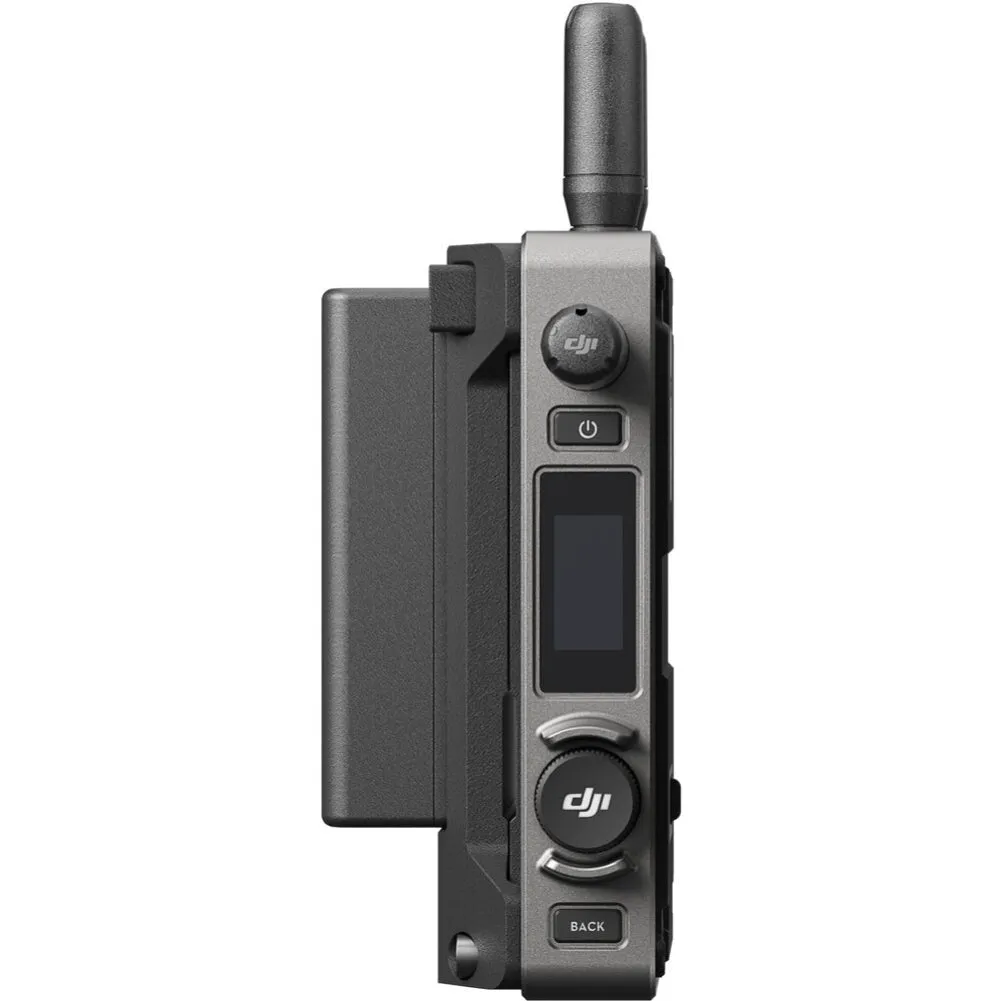

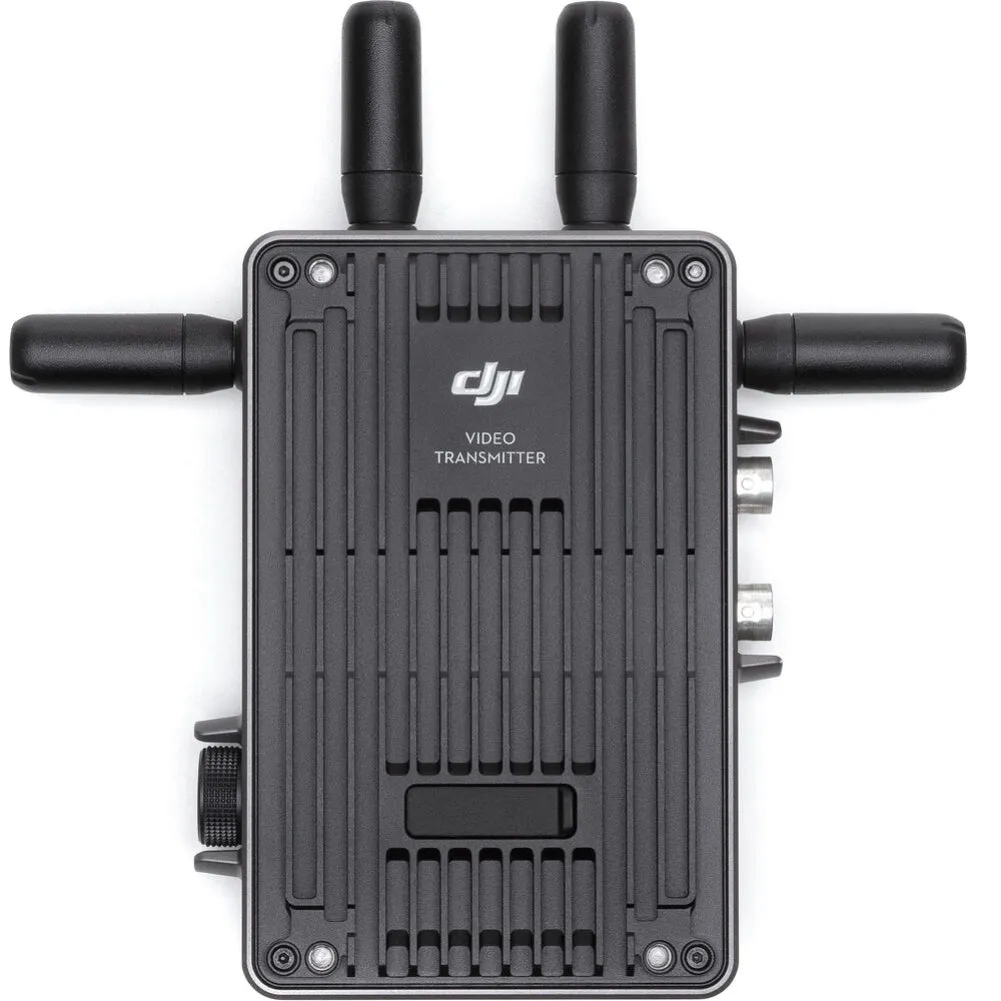

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear with the DJI Wireless Video Transmitter. Pairing with a separately available monitor/receiver, this transmitter delivers up to 1080p60 video using the efficient O3 Pro transmission technology over 2.4 and 5 GHz Wi-Fi frequencies. Optional high-gain antennas can also be added to enhance signal quality and increase transmission distance.
The transmitter supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance. The transmitter can be powered via an optional L-series battery, WB37 battery, or its DC power input, or it can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3.
Long-Distance HD Live Feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.
End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimised to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.
Seamless Auto Frequency Hopping
One Transmitter with Multiple Receivers for Coordinated Shooting
Encrypted Transmission
DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage.
Specifications
- Transmit 1080p60 Video over 3 Miles LoS
- O3 Pro Video Transmission Technology
- Transmit to 2 x Receivers Simultaneously
- HDMI/3G-SDI Input, 3G-SDI Loop Output
- AES 256-Bit Encryption
- Send Lower Res to Unlimited Receivers
- Compatible with High-bright RX Monitor

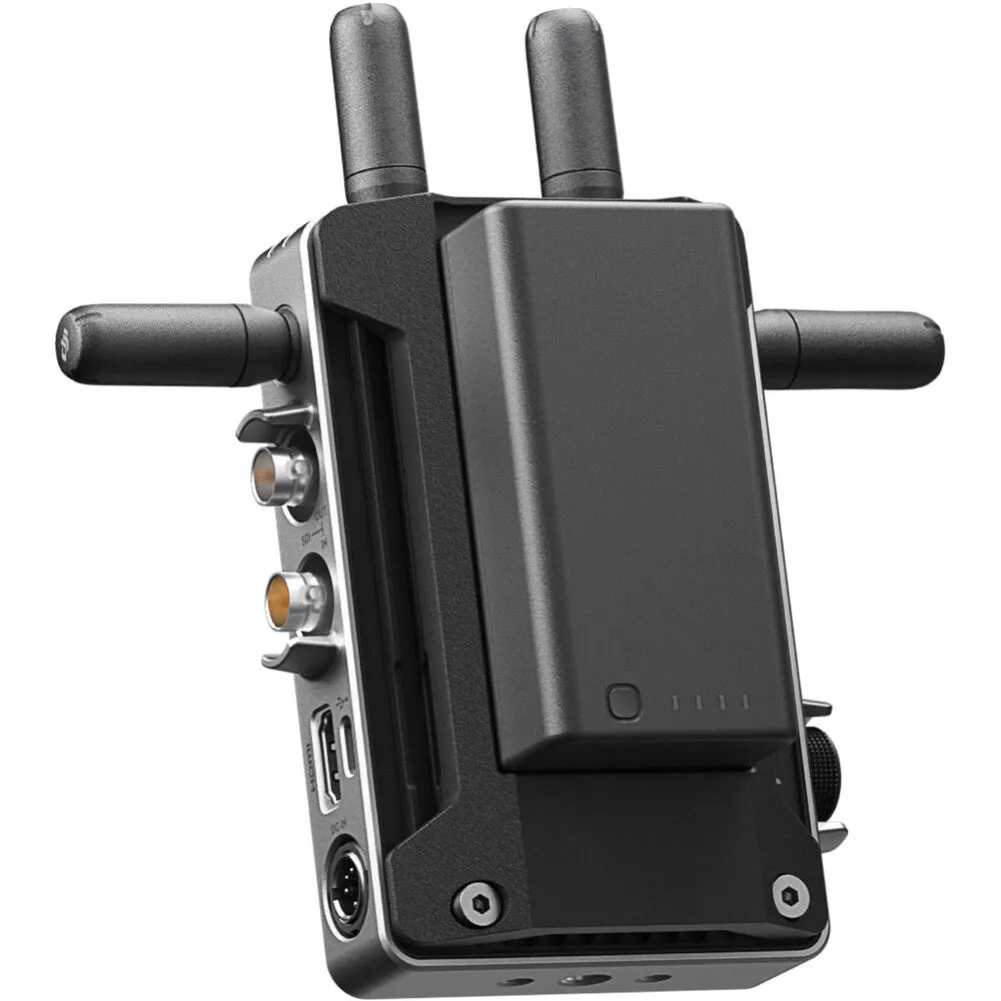

- Power via L-Series Battery
- Works with Ronin 2 / RS 3 Pro Gimbals
- Can Power Directly by a DJI Gimbal
| Antenna I/O |
RP-SMA Female
|
| Video I/O |
BNC (3G-SDI) Input
|
| HDMI 1.4 Input | |
| BNC (3G-SDI) Loop Output | |
| Embedded Audio |
HDMI/SDI
|
| Power I/O |
USB-C Input
|
| Barrel Input | |
| Encryption |
256-Bit AES
|
| Wireless Range |
3.7 Miles / 6 km (Line-of-Sight)
|
| # of Channels |
23
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
Non-DFS Frequencies
|
| 2.4 to 2.48 GHz | |
| 5.15 to 5.25 GHz | |
| 5.72 to 5.85 GHz | |
| DFS Frequencies | |
| 5.25 to 5.35 GHz | |
| 5.47 to 5.6 GHz | |
| 5.65 to 5.72 GHz | |
| Latency |
68 ms
|
| RF Power |
< 33 dBm
|
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
| Video Format |
HDMI/SDI (10-Bit 4:2:2 YCC)
|
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Audio Format |
16-Bit 48 kHz PCM Audio
|
| Wireless Video Compression |
Compressed
|
| Input Power |
6 to 18 VDC
|
| Battery Type |
L-Series (Interchangeable Mount)
|
| Power Consumption |
11 W
|
| Mounting |
Cold Shoe
|
| 3/8"-16 Female | |
| 1/4"-20 Female | |
| Certifications |
CE, FCC
|
| Operating Temperature |
22 to 77°F / -10 to 45°C
|
| Dimensions |
12.7 x 8.7 x 2.6 cm
|
| Weight |
0.350 kg
|

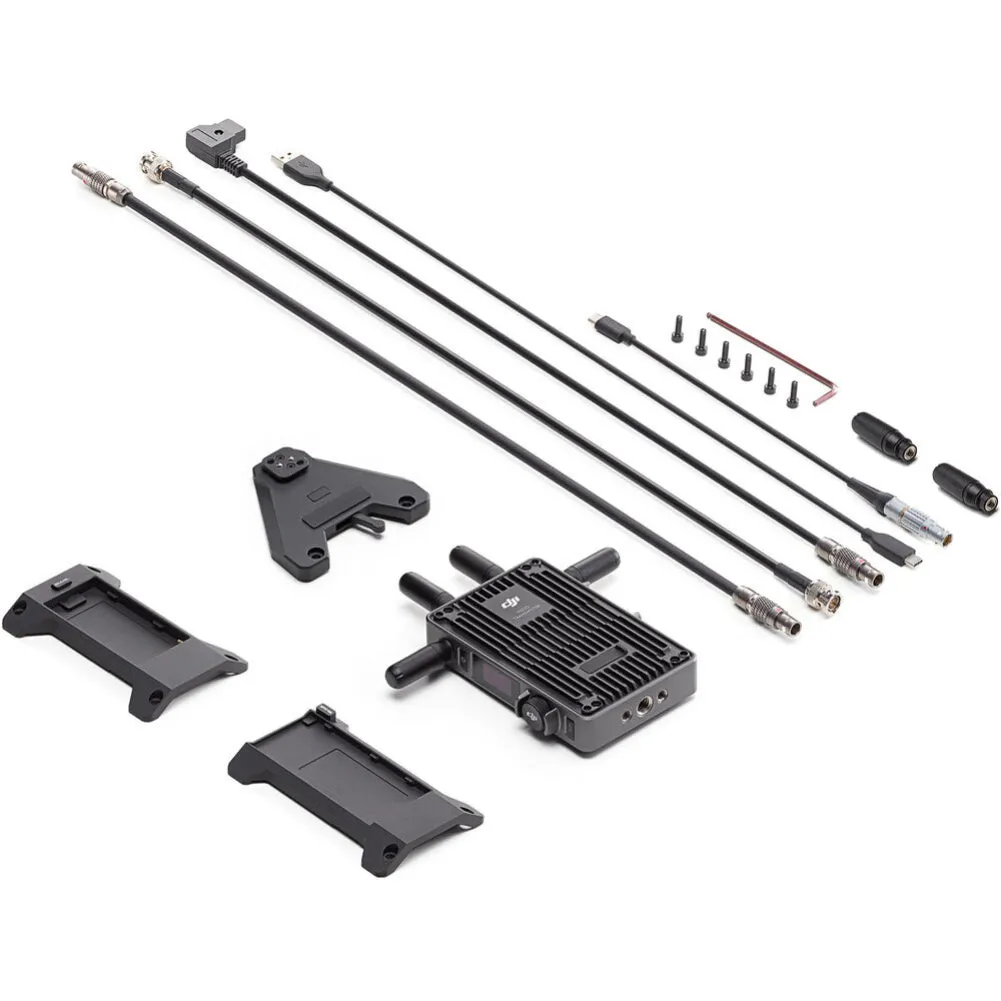

What's Included
1 x DJI Video Transmitter for RS 3
1 x L-Series/NP-F Battery Adapter
1 x WB37 Battery Adapter
2 x Antenna
1 x USB-C Cable
1 x SDI Cable
1 x DC Power Cable
1 x DC to D-Tap Power Cable
1 x DC to USB-C Power Cable
1 x RS Gimbal Mounting Plate
1 x Installation Toolkit
